Powder painting line
- Max. dimensions of parts - 2500x900x1700 mm (LxWxH)
- Capacity of powder painting line is 150m2/hour
- Max. loading capacity of conveyor - 100 kg/m
- Possibility of treatment steel, stainless, aluminium, zincor, galvatite
- Technological procedure:
- Degreasing + ferrum-phosphate
- Rinsing with industrial water
- Rinsing with demineralized water (max. 400µS)
- Rinsing with demineralized water (max. 40µS)
- Passivation for increased corrosion resistance if needed
- Drying by hot air cca 100°C

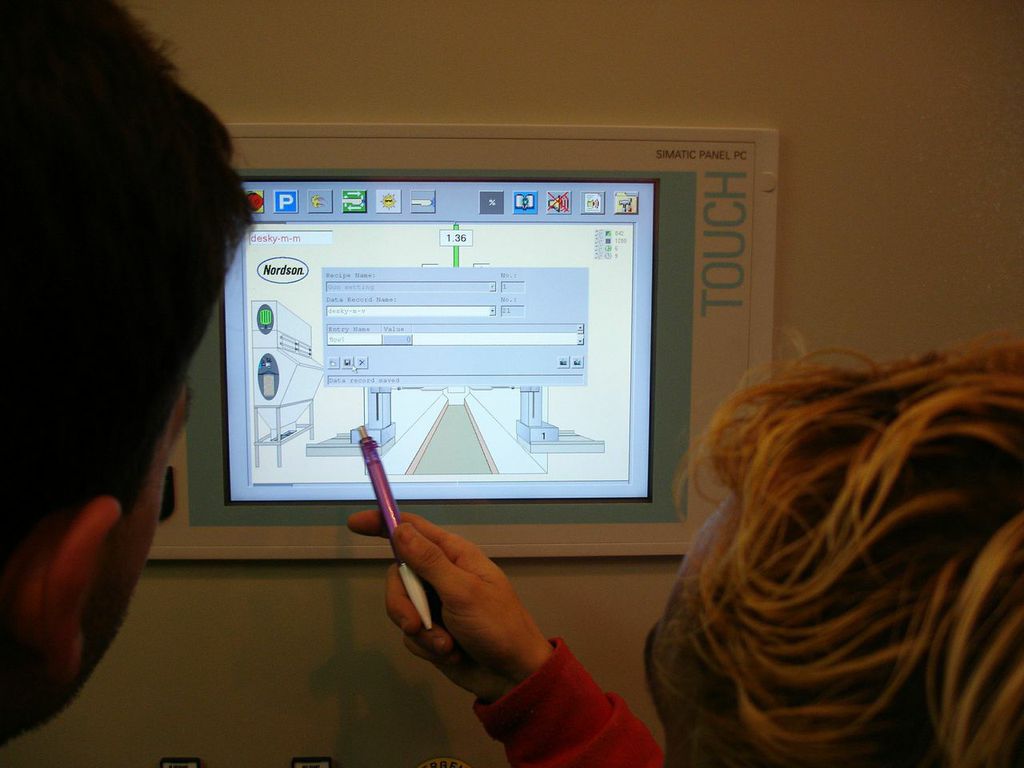

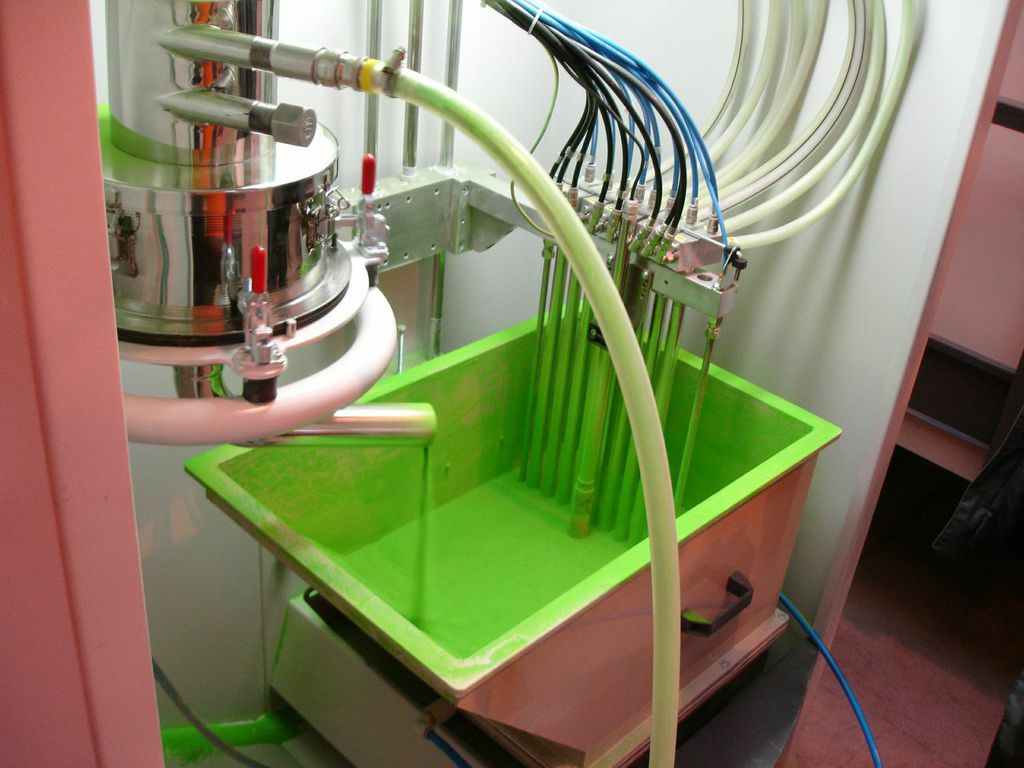

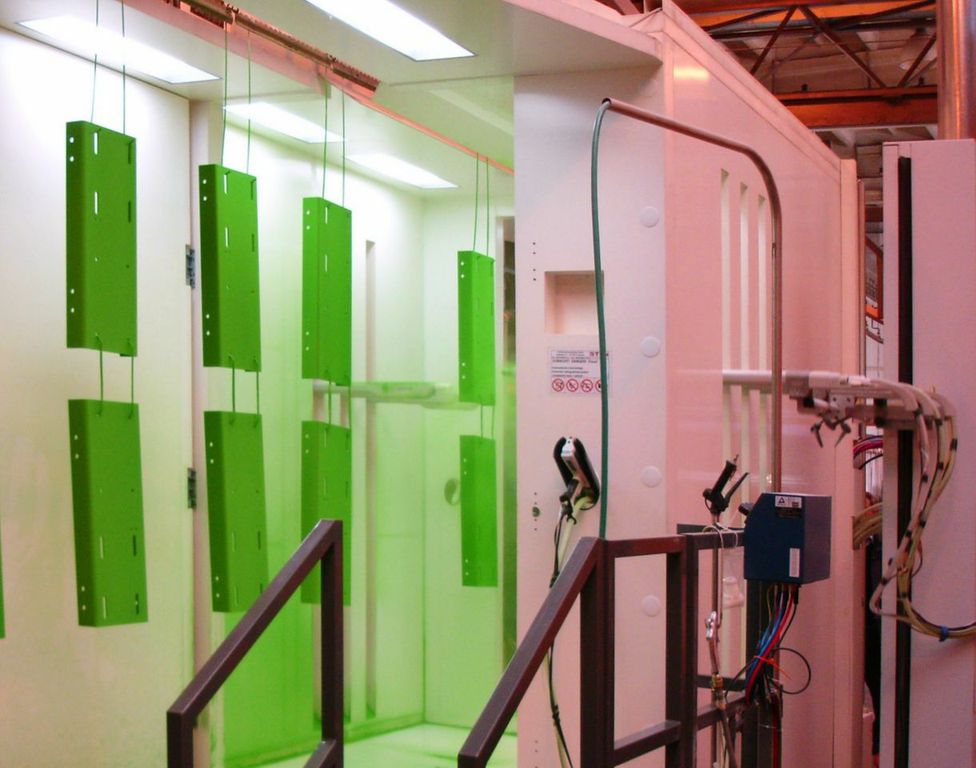

- Powder painting in plastic booth Nordson with 6 automatic guns and 2 hand operated workplaces
- Baking in continuous oven
- Tests of painting quality:
- Colour thickness measurement
- Cross test
- Bending test
- Impact test
- Measurement of brilance
- Salt spray test and other tests in cooperation with accredited laboratories
Other surface treatment operations
Company ensures wet painting, elctrolytic zinc, hot deep zinc, catophoresis, pickling, nickeling, chroming, silk-screen printing, sand and pearl blasting, etc. in cooperation with companies, which are regularly checked and certified.
